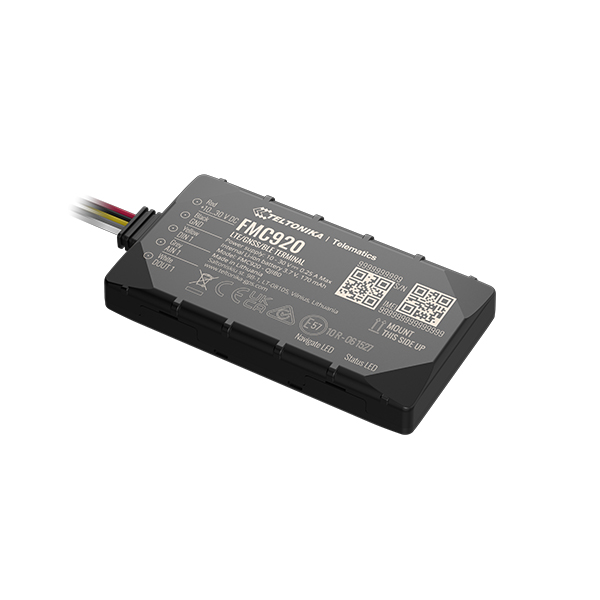

FMC920 - Fahrzeug-Tracker - für den verdeckten Einbau

11,95 58,45

Includes 19% MwSt.
Lieferzeit für Deinen Standort: ca. 1-2 Werktage
+

Description

Teltonika FMC920 ist ein kleiner und intelligenter Tracker mit Bluetooth-Konnektivität, internen High Gain GNSS und GSM Antennen und einer integrierten Pufferbatterie. Die 4G Cat 1-Technologie bietet eine hohe Bandbreite mit geringer Latenz und verbesserter Spektrumeffizienz. Das Modell ist kompakt, zuverlässig, präzise und langlebig. Alle vorhandenen Schnittstellen reichen für ein einfaches Tracking völlig aus. Der digitale Eingang kann für die Statusüberwachung der Zündung, der Tür oder der Alarmtaste verwendet werden. Während der Digitalausgang für die ferngesteuerte Wegfahrsperre des Fahrzeugs verwendet werden kann. Gleichzeitig erweitert der Analog Input die Einsatzszenarien der Geräte mit Temperatur-, Luftfeuchtigkeits-, Füllstandsüberwachung und vielem mehr.

Additional information

Weight 54 g
Dimensions 79 × 43 × 12 mm
Module
Name FMC920-QJIB0: Quectel EG915U-EU with Teltonika TM2500
FMC920-QKIB0: Quectel EG915U-LA with Teltonika TM2500
Technology LTE Cat 1/GSM/GPRS/GNSS/BLUETOOTH
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver 33 channel
Tracking sensitivity -165 dBM
Accuracy < 3 m
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
Cellular
Technology LTE Cat 1, GSM
2G bands FMC920-QJIB0: GSM: B2/B3/B5/B8
FMC920-QKIB0: GSM: B2/B3/B5/B8
4G bands FMC920-QJIB0: LTE FDD: B1/B3/B7/B8/B20/B28
FMC920-QKIB0: LTE FDD: B2/B3/B4/B5/B7/B8/B28/ B66
Data transfer LTE: LTE FDD : Max 10Mbps (DL)/Max 5Mbps (UL)
LTE TDD: Max 85.6 Mbps (DL)/Max 85.6 Mbps (UL)
GSM: GPRS: Max 85.6Kbps (DL)/ Max 85.6Kbps (UL)
Data support SMS (text/data)
Power
Input voltage range 10 – 30 V DC with overvoltage protection
Back-up battery 170 mAh Li-Ion battery (0.63 Wh)
Power consumption At 12V < 2 mA (Ultra Deep Sleep)

At 12V < 3 mA (Deep Sleep)

At 12V < 8 mA (Online Sleep)

At 12V < 12 mA (GNSS Sleep)

At 12V < 28 mA (Nominal)

Bluetooth
Specification 4.0 + LE
Supported peripherals Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner,
Universal BLE sensors support
Physical specification
Dimensions 79 x 43 x 12 mm (L x W x H)
Weight 54 g
Interface
Digital Inputs 1
Digital Outputs 1
Analog Inputs 1
GNSS antenna Internal High Gain
Cellular antenna Internal High Gain
USB 2.0 Micro-USB
LED indication 2 status LED lights
SIM Micro-SIM
Memory 128MB internal flash memory
Operating environment
Operating temperature (with battery) -20 °C to +40 °C
Operating temperature (without battery) -40 °C to +85 °C
Storage temperature (without battery) -40 °C to +85 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP54
Battery charge temperature 0 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature -20 °C to +35 °C for 1 month
-20 °C to +30 °C for 6 months
Features
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS Configuration, Events, DOUT control, Debug
GPRS commands Configuration, DOUT control, Debug
Time Synchronization GPS, NITZ, NTP
Fuel monitoring LLS (Analog), OBDII dongle
Ignition detection Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)
Certification & Approvals
Regulatory FMC920-QJIB0: CE/RED, E-Mark, CITC, TRA, RCM, RoHS, REACH
FMC920-QKIB0: RCM, RoHS, Anatel (in progress)
